IF-THEN-ELSE statement in VHDL

VHDL Conditional Statement

VHDL is a Hardware Description Language that is used to describe at a high level of abstraction a digital circuit in an FPGA or ASIC.

When we need to perform a choice or selection between two or more choices, we can use the VHDL conditional statement.

Since the VHDL is a concurrent language, it provides two different solutions to implement a conditional statement:

  • sequential conditional statement
  • concurrent conditional statement

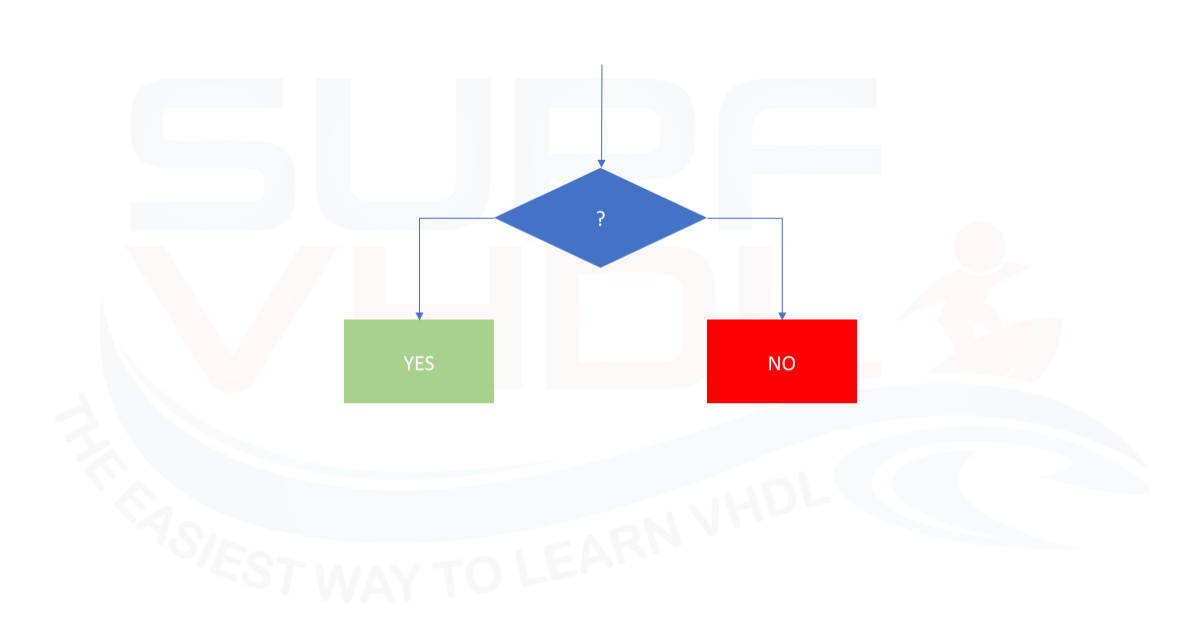

Figure 1 – Typical conditional statement representation


Sequential conditional statement

The sequential conditional statement can be used in

  • process
  • subprogram

The BNF of a conditional statement is:

if_statement ::=
  if condition then
    sequence_of_statements
    { elsif condition then
      sequence_of_statements }
  [ else
    sequence_of_statements ]
  end if ;
if boolean-expr-1 then
  sequential-statements;
elsif boolean-expr-2 then
  sequential-statements ;
elsif boolean-expr-3 then
  sequential-statements;
else
  sequential-statements;
end if;

Concurrent conditional statement

The concurrent conditional statement can be used in the architecture concurrent section, i.e. between the “begin-end” section of the VHDL architecture definition.

The BNF of the concurrent conditional statement is:

conditional_signal_assignment ::= target <= conditional_waveforms ;

conditional_waveforms ::=
  { waveform when condition else } waveform


Example:

s  <=      waveform_1 when condition_1
      else waveform_2 when condition_2 else
      else waveform_3 when condition_3 else
      ...
      waveform_n;

Conditional Statement Sequential vs Concurrent

You can use either sequential or concurrent conditional statement. It’s up to you.

There is a total equivalence between the VHDL “if-then-else” sequential statement and “when-else” statement.

Here below we can see the same circuit described using VHDL “if-then-else” or “when-else” syntax.



When you use a conditional statement, you must pay attention to the final hardware implementation.

A conditional statement can be translated into a MUX or a comparator or a huge amount of combinatorial logic.

The hardware architecture derived from a single line containing an “IF” or a “when” can be translated into something that can slow down your design or make your design not realizable.

VHDL example of Conditional Statement

Let’s see two typical example of VHDL conditional statement implementing a MUX and an unsigned comparator



Here below the VHDL code for a 2-way mux. The data input bus is a bus of N-bit defined in the generic.

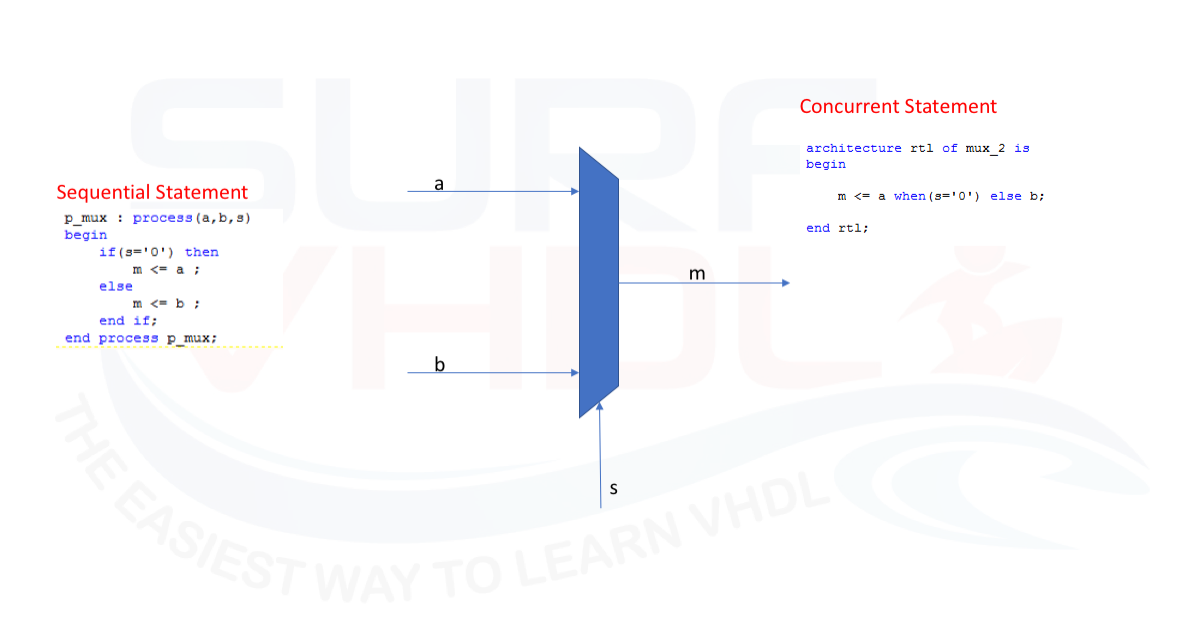

Figure 2 – 2-way mux architecture

As clear if the number of bits is small, the hardware required for the 2-way mux implementation is relatively small and you can use the mux output to feed your logic without any problem.

library ieee ;
use ieee.std_logic_1164.all;

entity mux_2 is
generic(
  G_N      integer:= 8);
port(
  a     : in  std_logic_vector(G_N-1 downto 0);
  b     : in  std_logic_vector(G_N-1 downto 0);
  s     : in  std_logic;
  m     : out std_logic_vector(G_N-1 downto 0));
end mux_2;

architecture rtl of mux_2 is
begin
  p_mux : process(a,b,s)
  begin
    if(s='0') then
      m <= a ;
    else
      m <= b ;
    end if;
  end process p_mux;
end rtl;

2-WAY MUX VHDL code sequential implementation




library ieee ;
use ieee.std_logic_1164.all;


entity mux_2 is
generic(
  G_N      integer:= 8);
port(
  a     : in  std_logic_vector(G_N-1 downto 0);
  b     : in  std_logic_vector(G_N-1 downto 0);
  s     : in  std_logic;
  m     : out std_logic_vector(G_N-1 downto 0));
end mux_2;

architecture rtl of mux_2 is
begin

  m <= a when(s='0') else b;

end rtl;

2-WAY MUX VHDL code concurrent implementation




If the number of bits G_N is going to become huge, the 2-way mux could, eventually, not implementable in your hardware.

The VHDL code for 2-way mux is always the same: a few lines of VHDL code can implement a small 2-way mux or a very large 2-way mux.



In this second example, we implement a VHDL signed comparator that is used to wrap around an unsigned counter.

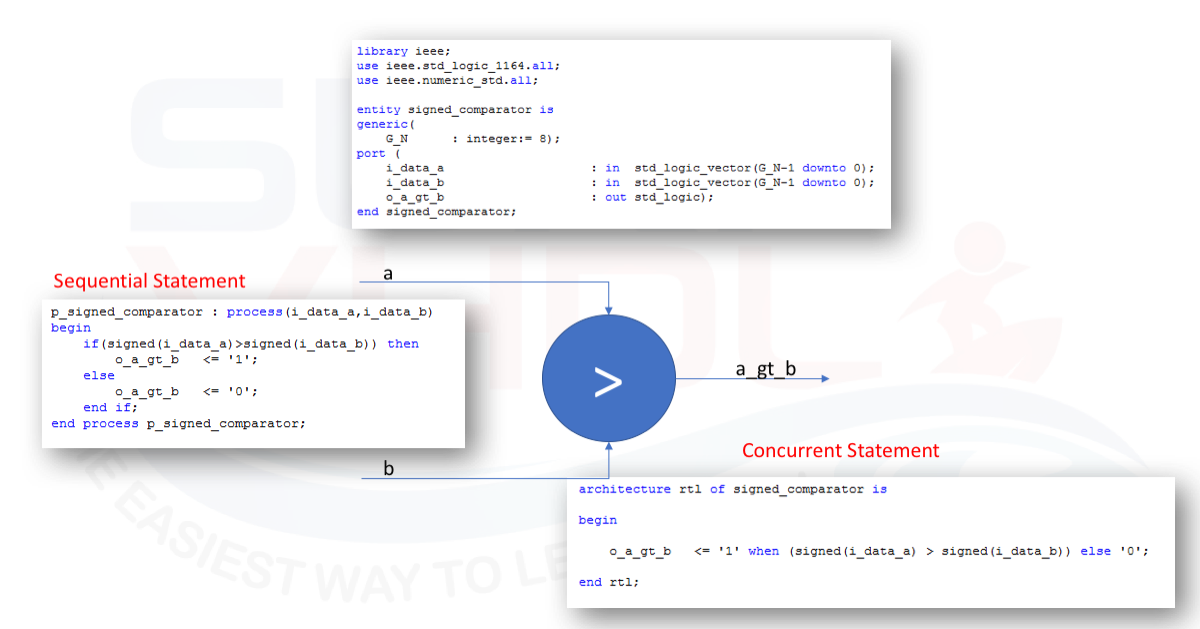

Figure 3 – Signed Comparator architecture

Also, in this case, depending on the number of bit of the signed comparator, the circuit could be not implementable depending on your hardware.

Here below the sequential implementation of VHDL for a signed comparator:

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity signed_comparator is
generic(
  G_N      : integer:= 8);
port (
  i_data_a                    : in  std_logic_vector(G_N-1 downto 0);
  i_data_b                    : in  std_logic_vector(G_N-1 downto 0);
  o_a_gt_b                    : out std_logic);
end signed_comparator;

architecture rtl of signed_comparator is

begin

p_signed_comparator : process(i_data_a,i_data_b)
begin
  if(signed(i_data_a)>signed(i_data_b)) then
    o_a_gt_b   <= '1';
  else
    o_a_gt_b   <= '0';
  end if;
end process p_signed_comparator;


end rtl;




Here below the concurrent implementation of VHDL for a signed comparator:

library ieee;
use ieee.std_logic_1164.all;
use ieee.numeric_std.all;

entity signed_comparator is
generic(
  G_N      : integer:= 8);
port (
  i_data_a                    : in  std_logic_vector(G_N-1 downto 0);
  i_data_b                    : in  std_logic_vector(G_N-1 downto 0);
  o_a_gt_b                    : out std_logic);
end signed_comparator;

architecture rtl of signed_comparator is

begin

  o_a_gt_b   <= '1' when (signed(i_data_a) > signed(i_data_b)) else '0';

end rtl;



For instance, you can implement a 4-bit signed comparator or a 2048-bit signed comparator just set the number of bit in the “G_N” constant.




Conclusion

Every time you write a VHDL code that needs to be implemented in a real hardware like FPGA or ASIC, you should pay attention to the final hardware implementation. In the two example above, we saw that the same simple VHDL code for a 2-way mux or unsigned counter can result in an impossible to implement hardware structures, so every time you write a single VHDL code,

Think Hardware
