How to Implement a sinusoidal DDS in VHDL

What is a sinusoidal Direct Digital Synthesis (DDS)?

The Direct Digital Synthesis (DDS) is a method of producing an analog waveform using a digital device. In this post, we are going to illustrate how to generate digitally a sine-wave using a digital device such as FPGA or ASIC.

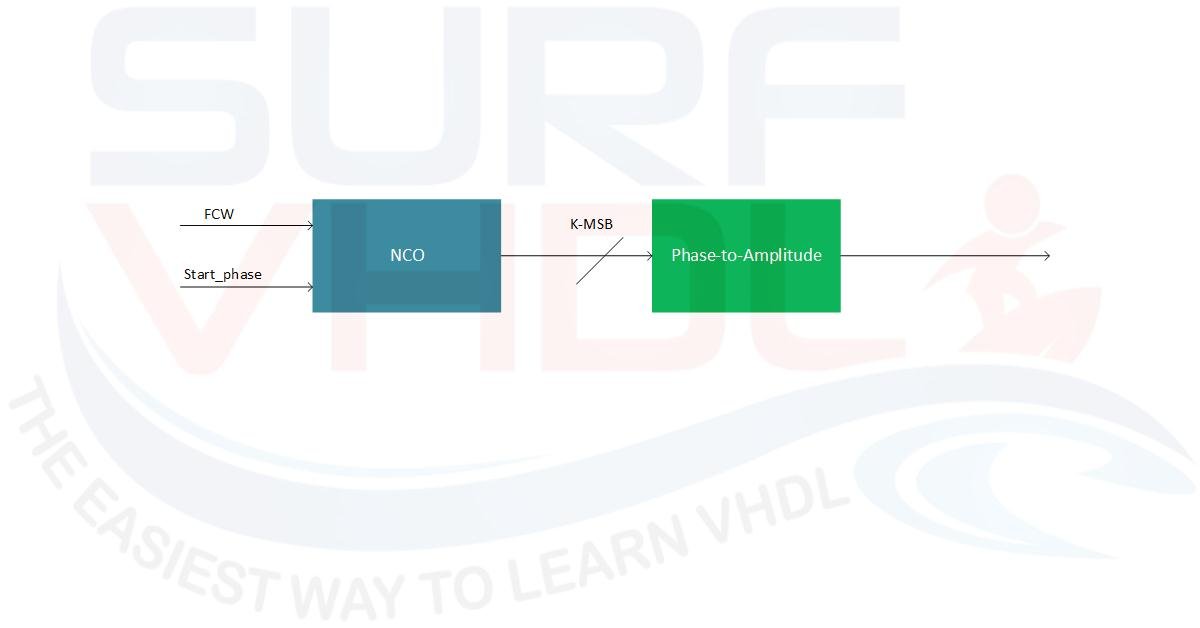

Figure1 – DDS typical architecture

The sine/cosine wave generated can be used inside your digital design in order to perform digital up/down frequency conversion. This technique is used, for example, in the modern DAC to perform digital upsampling after signal interpolation. The interpolated DAC 5687 from Texas Instruments is an example.

Since the operations are digital, the DDS offers fast switching between output frequencies, fine frequency resolution, and operation over a broad spectrum of frequencies. If you need to generate an analog waveform a digital-to-analog conversion is required. The typical DDS architecture for generating an analog sinusoidal wave is reported in Figure 1.

There are many devices ready-to-use that implement DDS to generate a programmable sinusoidal wave. An example is the AD9837 from Analog Devices a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. The internal architecture of the AD9837 is reported in Figure 2.

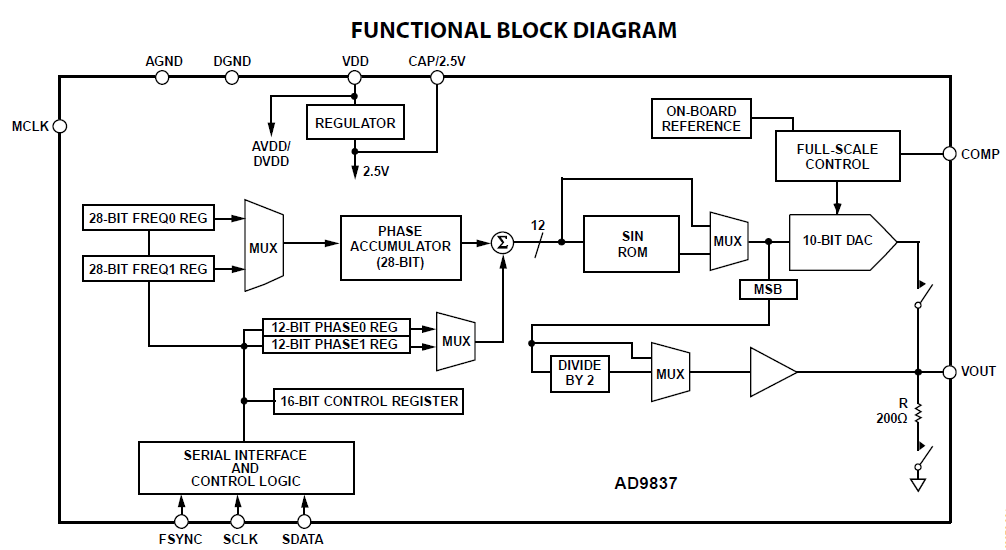

Figure2 – AD9837 internal architecture

As clear, the 10-bit DAC can be driven either with SIN ROM output generating a sine wave or from the MSB of the NCO i.e. a programmable saw tooth.

DDS use in digital processing

In this post relative to NCO, we dealt about the first step in DDS implementation i.e. the phase accumulator. In order to implement a sinusoidal wave generator, we need to implement the phase-to-amplitude conversion. This can be done basically in two different way:

  • Using a Look-Up-Table (LUT);
  • Using a Cordic

In both cases, the MSB of the NCO phase accumulator are used to address the phase-to-amplitude block
In the DDS architecture, we need first an NCO. Generally, the number of bist used in the NCO quantization is in the range of 24-48 bit. For a 32 bit quantization, the frequency resolution of the NCO is Fc/2ˆ32, where Fc is the clock frequency of the system.
For example, if the clock frequency is 100 MHz the frequency resolution will be:

100.000.000/ 4.294.967.296 = 0,023 Hz

More general, the wrap-around frequency Fw is given in (Eq.1)

Fw = Fc x FCW/(2^N)      (Eq.1)

You can find more details on the NCO [here].

The MSB of the NCO accumulator is used to address the sine table or to provide the phase control word for the cordic. The phase errors introduced by truncating the NCO accumulator will result in errors in amplitude during the phase-to-amplitude conversion process inherent in the DDS. The NCO wraps around cyclically so these truncation errors are periodic. Since these amplitude errors are periodic in the time domain, they appear as line spectra (spurs) in the frequency domain and are what is known as phase truncation spurs.

The magnitude and distribution of phase truncation spurs dependent on three aspects:

  • number of bit of the NCO Accumulator (NBIT);
  • number of bit of the “Phase word” (NPHASE) i.e., the number of bits used for LUT addressing
  • FWC value

Spur Magnitude due to the phase truncation

Some FCW yield no phase truncation spurs at all while others yield spurs with the maximum possible level. If the value NBIT-NPHASE>4 (this is the typical situation in DDS design), then the maximum spur level turns out to be very closely approximated by

–6.02 x NPHASE dBc.

For instance, 32-bit NCO with a 12-bit phase word results in phase truncation spurs of no more than –72dBc regardless of the tuning word chosen:

12*6 = 72

Implement a sinusoidal wave in VHDL using a DDS

So, it is the time to see an example of VHDL implementation of a digital sinusoidal generator. The architecture we are going to implement is presented in Figure1:

  • NCO
  • LUT containing sine sample

The LUT can be generated using the strategy discussed in this post. So, we initialize a constant with the sine sample directly generated in VHDL. Note that you can use this code in your FPGA implementation since the synthesizer can initialize the LUT and implement a ROM with the sine sample as we will see in next in this section with an example using Altera Quartus II.
The VHDL code for a DDS implementing a digital sine/cosine generator is reported below:

library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.numeric_std.all;
use ieee.math_real.all;

entity dds_sine is
port(
  i_clk          : in  std_logic;
  i_rstb         : in  std_logic;
  i_sync_reset   : in  std_logic;
  i_fcw          : in  std_logic_vector(31 downto 0);
  i_start_phase  : in  std_logic_vector(31 downto 0);
  o_sine         : out std_logic_vector(13 downto 0));
end dds_sine;

architecture rtl of dds_sine is

constant C_LUT_DEPTH    : integer := 2**13;  -- 8Kword
constant C_LUT_BIT      : integer := 14;     -- 14 bit LUT
type t_lut_sin is array(0 to C_LUT_DEPTH-1) of std_logic_vector(C_LUT_BIT-1 downto 0);

-- quantize a real value as signed
function quantization_sgn(nbit : integer; max_abs : real; dval : real) return std_logic_vector is
variable temp    : std_logic_vector(nbit-1 downto 0):=(others=>'0');
constant scale   : real :=(2.0**(real(nbit-1)))/max_abs;
constant minq    : integer := -(2**(nbit-1));
constant maxq    : integer := +(2**(nbit-1))-1;
variable itemp   : integer := 0;
begin
  if(nbit>0) then
    if (dval>=0.0) then
      itemp := +(integer(+dval*scale+0.49));
    else
      itemp := -(integer(-dval*scale+0.49));
    end if;
    if(itemp<minq) then itemp := minq; end if;
    if(itemp>maxq) then itemp := maxq; end if;
  end if;
  temp := std_logic_vector(to_signed(itemp,nbit));
  return temp;
end quantization_sgn;

-- generate the sine values for a LUT of depth "LUT_DEPTH" and quantization of "LUT_BIT"
function init_lut_sin return t_lut_sin is
variable ret           : t_lut_sin:=(others=>(others=>'0'));  -- LUT generated
variable v_tstep       : real:=0.0;
variable v_qsine_sgn   : std_logic_vector(C_LUT_BIT-1 downto 0):=(others=>'0');
constant step          : real := 1.00/real(C_LUT_DEPTH);
begin
  for count in 0 to C_LUT_DEPTH-1 loop
    v_qsine_sgn := quantization_sgn(C_LUT_BIT, 1.0,sin(MATH_2_PI*v_tstep));
    ret(count)  := v_qsine_sgn;
    v_tstep := v_tstep + step;
     end loop;
     return ret;
end function init_lut_sin;

-- initialize LUT with sine samples
constant C_LUT_SIN                 : t_lut_sin := init_lut_sin;
signal r_sync_reset                : std_logic;
signal r_start_phase               : unsigned(31 downto 0);
signal r_fcw                       : unsigned(31 downto 0);
signal r_nco                       : unsigned(31 downto 0);
signal lut_addr                    : std_logic_vector(12 downto 0);
signal lut_value                   : std_logic_vector(13 downto 0);

begin

p_nco : process(i_clk,i_rstb)
begin
  if(i_rstb='0') then
    r_sync_reset      <= '1';
    r_start_phase     <= (others=>'0');
    r_fcw             <= (others=>'0');
    r_nco             <= (others=>'0');
  elsif(rising_edge(i_clk)) then
    r_sync_reset      <= i_sync_reset   ;
    r_start_phase     <= unsigned(i_start_phase);
    r_fcw             <= unsigned(i_fcw);
    if(r_sync_reset='1') then
      r_nco             <= r_start_phase;
    else
      r_nco             <= r_nco + r_fcw;
    end if;
  end if;
end process p_nco;

p_rom : process(i_clk)
begin
  if(rising_edge(i_clk)) then
    lut_addr   <= std_logic_vector(r_nco(31 downto 19));
    lut_value  <= C_LUT_SIN(to_integer(unsigned(lut_addr)));
  end if;
end process p_rom;

p_sine : process(i_clk,i_rstb)
begin
  if(i_rstb='0') then
    o_sine     <= (others=>'0');
  elsif(rising_edge(i_clk)) then
    o_sine     <= lut_value;
  end if;
end process p_sine;

end rtl;

The VHDL of the DDS implements a sine wave generator using an NCO 32 bit wide with programmable FCW and start phase. The sine LUT is generated using the initialization function “init_lut_sin”. The sine samples are quantized at 14 bit and can be straight connected to a DAC digital input. The LUT length is 8K word@ 14 bit so we need to use the 13 MSB from the NCO to address the LUT input.
In the VHDL of the DDS for the sine generator, we used two functions:

the first quantize_sgn is used to quantize the floating-point value of the sine to a fixed-point value at 14 bits;

the second function init_lut_sin aims to initialize the constant C_LUT_SIN. The constant C_LUT_SIN is defined as an array of std_logic_vector, this should trigger the synthesizer to map the constant into a ROM.

You should always verify if the constant has been mapped into a ROM macro. If not, you are wasting a huge amount of FPGA logic.

Layout the VHDL code of DDS on Quartus II

In this VHDL implementation of the DDS, the process p_rom do not use the asynchronous reset. It could depend on the technology you are using: the compiler can map a structure into the dedicated hardware only if such hardware macro is available in the silicon, in the other case, the VHDL compiler will try to implement the functionality with the available logic. Using a process with reset Quartus II doesn’t map the C_LUT_SIN constant into a ROM but uses internal FPGA logic.
Using this approach the C_LUT_SIN is mapped into a ROM as clear from Figure 3 where is reported the FITTER report: the ROM is initialized with the “dds_sine.dds_sine0.rtl.mif” file self-generated by Quartus II.

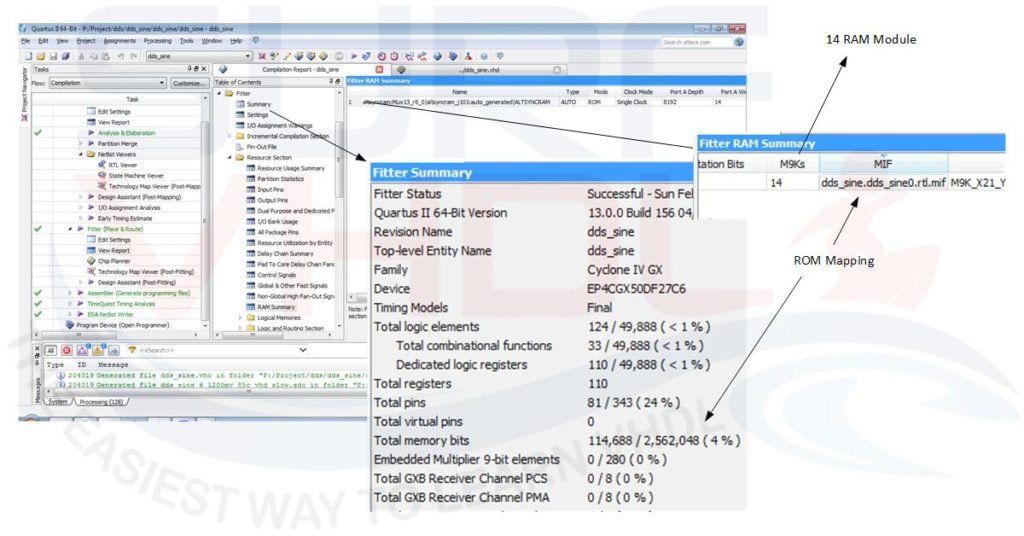

Figure 3 – Layout report of VHDL Code of a DDS

If we want to perform an extra check, we can verify that the ROM mapped into the FPGA is initialized correctly checking the initialization file versus the C_LUT_SIN constant visible in the “Locals” of ModelSim simulation as in Figure 4. In the figure is reported the head and tail of the Altera ROM initialization MIF file versus ModelSim simulation of the constant containing the sine table value. As clear the two values match.

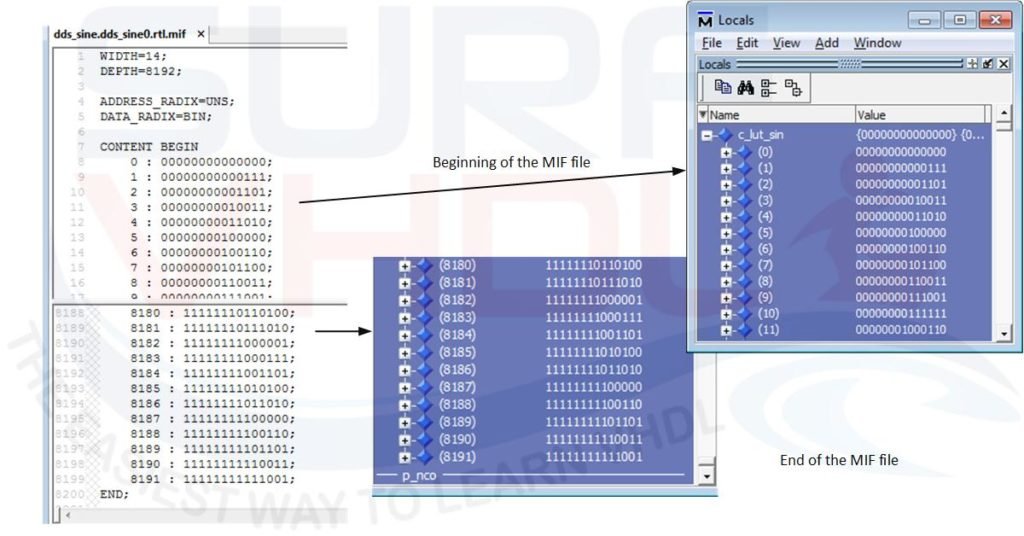

Figure 4 – DDS ROM initialization file vs simulation comparison

Simulation of the VHDL DDS implementation with programmable start phase

In the simulation of Figure 5, the test bench instantiates two identical DDS. The DDS are programmed with the same FCW such and different start phase. In the example, the system clock is 10 ns i.e. 100 MHz. The FCW is programmed to generate a sine wave of 1 MHz:

FCW = 1/100 *2^32 = 0x028F5C28      EQ.2

The phase offset is:

180/360 * 2^32 = 0x80000000

For example, using more than a DDS with different phase offset you can implement a Digital Beam Forming network. This architecture is widely used in telecommunication to move digitally the antenna beam during transmission.

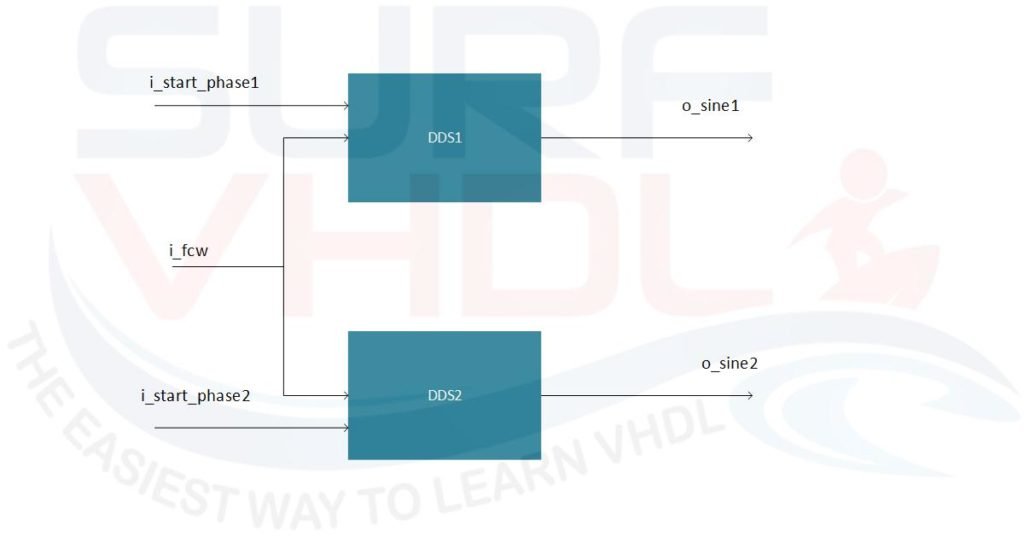

Figure 5 – DDS test bench

In Figure 6 is represented the simulation of two DDS generating a sinusoidal wave of 1 MHz. The system clock is 100 MHz so the sine wave contains 100 sample per period. It can be observed from the very smooth wave in the simulation. The mutual phase shift is 180°.

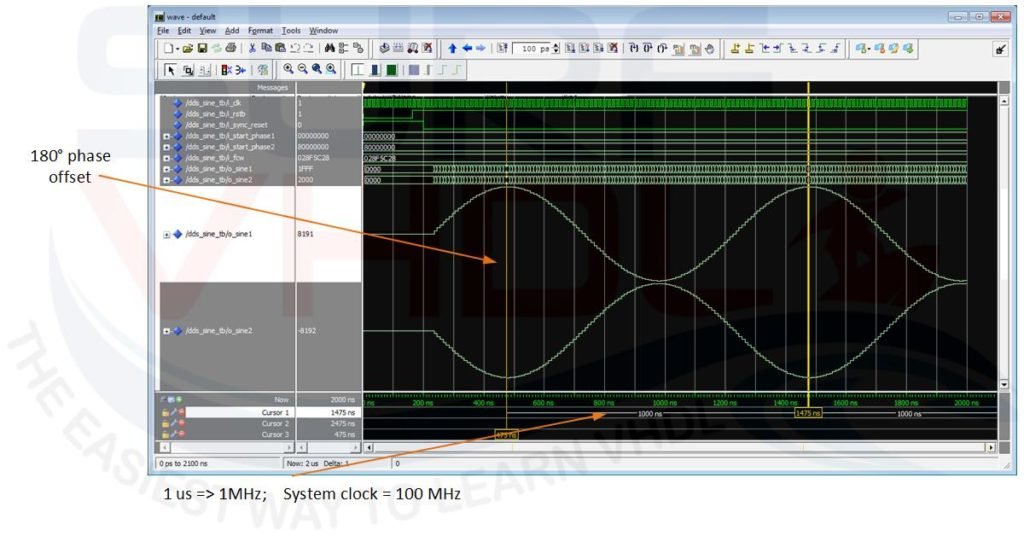

Figure 6 – DDS simulation with phase offset

Conclusion

In this post, we addressed the VHDL realization of a sinusoidal DDS. The VHDL code is fully synthesizable on FPGA and ASIC. By the way, using the approach of table computation using initialization function you must verify the correct implementation of the LUT on silicon.
I hope you could find this post useful for your designs. If so, please share it with your friend using the social button below. It is also a way to help the blog to grow.


Reference:
1. “A Technical Tutorial on Digital Signal Synthesis” Analog Devices
2. “All About Direct Digital Synthesis” Analog Devices
3. “Direct Digital Synthesizers: Theory, Design and Applications” Jouko Vankka, Helsinki University of Technology


If you appreciated this post, please help us to share it with your friend.

[social_sharing style=”style-7″ fb_like_url=”https://surf-vhdl.com/implement-digital-ask-modulator-in-vhdl” fb_color=”light” fb_lang=”en_US” fb_text=”like” fb_button_text=”Share” tw_lang=”en” tw_url=”https://surf-vhdl.com/implement-digital-ask-modulator-in-vhdl” tw_button_text=”Share” g_url=”https://surf-vhdl.com/implement-digital-ask-modulator-in-vhdl” g_lang=”en-GB” g_button_text=”Share” linkedin_url=”https://surf-vhdl.com/implement-digital-ask-modulator-in-vhdl” linkedin_lang=”en_US” alignment=”center”]

If you need to contact us, please write to: surf.vhdl@gmail.com

We appreciate any of your comment, please post below:

35 thoughts to “How to Implement a sinusoidal DDS in VHDL”

      1. Could you please share the testbench and the simulation code with me to?

        I am using Vivado Xilinx. Do I have to conder sth.?

        Christina

  1. Hi,
    I was wondering if i could also get th test bench of that code if you wouldn’t mind 🙂
    I’ve sent you a mail to get it !

    Thx for the article btw!

    1. Hi Shalini, the EQ.2 in the simulation section reports the example for 1 MHz example.
      Just use this equation to set your new frequency
      Ciao

  2. Hello,
    Is the ‘i_start_phase’ really needed ? If yes, why is it needed. The design can be sensitive to only i_clk and i_rstb, without i_sync_rst and i_start_phase.

    Thank you

    1. The start_phase can be used, for instance, if you are generating two tones SIN and COS.
      In this case, you can set 90° phase offset to one of the tow DDS generators to have two tones in quadrature
